# VTOL board

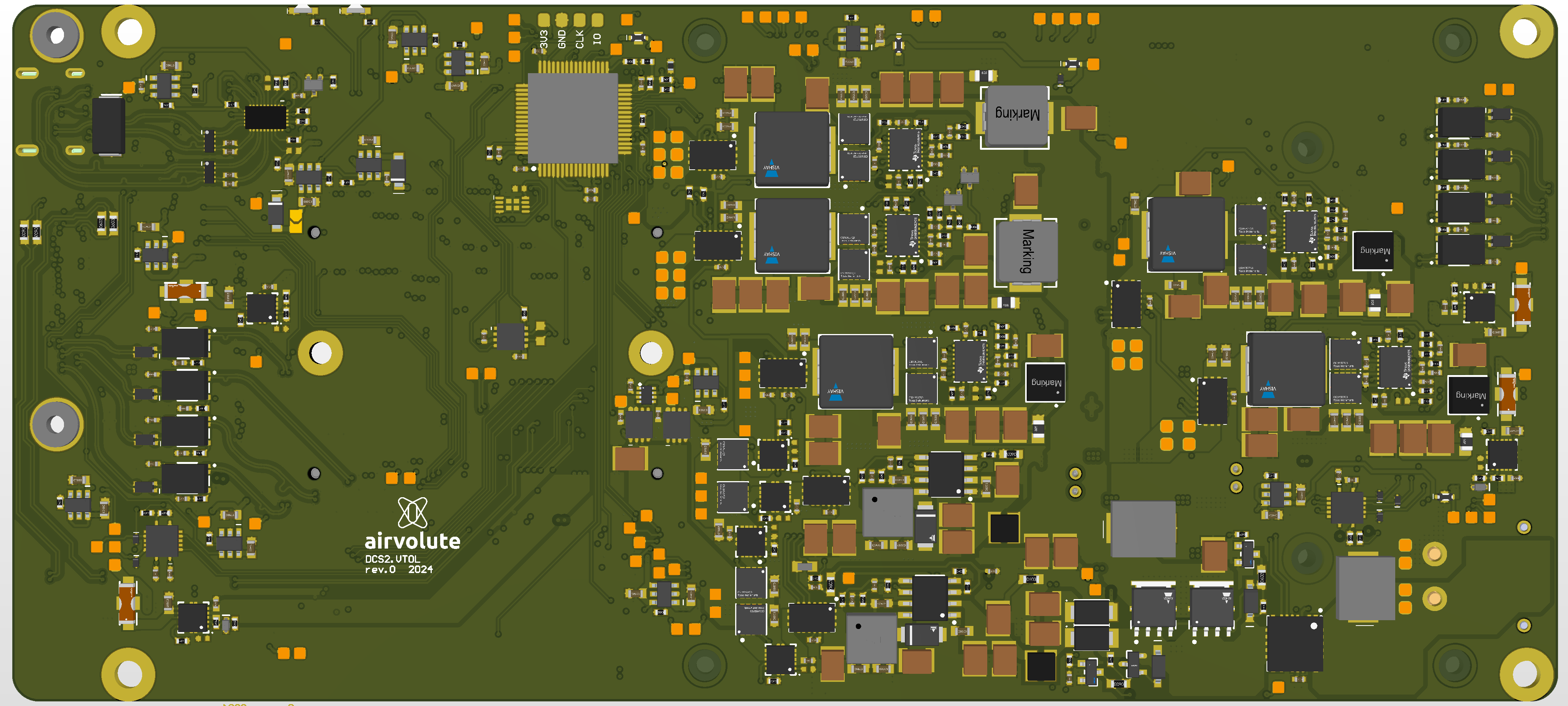

<figure><img src="https://341257526-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FkuuT7PXOBpck5wDlb6XM%2Fuploads%2Fgit-blob-a58c121bf8090ac864286cfd27dcb70be38c28f4%2Fimg_9202-removebg-preview.png?alt=media" alt=""><figcaption><p>DCS2.VTOL</p></figcaption></figure>

## Description <a href="#description" id="description"></a>

DCS2.VTOL represents a special extension board for Pilot/Pilot\_PX board, which combines both power distribution and signal extension. It's design is optimized for fixed-wing / vtol type of drones.

***

## Dimensions <a href="#dimensions" id="dimensions"></a>

<figure><img src="/files/PsgOleJsyvnghJxPsnXD" alt=""><figcaption></figcaption></figure>

***

## Power supply

<figure><img src="/files/WLBCER8FINtLQIrvs3Es" alt=""><figcaption></figcaption></figure>

***

## Peripherals

<figure><img src="/files/cKXugg2tFR0vNo81oKYf" alt=""><figcaption></figcaption></figure>

***

<h2 align="center">Connectors and pinouts</h2>

### Top side connectors

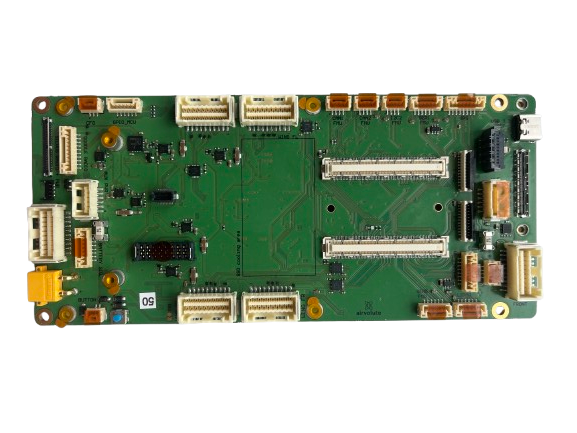

<figure><img src="https://341257526-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FkuuT7PXOBpck5wDlb6XM%2Fuploads%2Fgit-blob-6b96adf86da9dd6cb19291997d2c8fc0adb19652%2FDCS2_VTOL%20(3).png?alt=media" alt=""><figcaption><p>DCS2.VTOL top side connectors orientation</p></figcaption></figure>

<details>

<summary><strong>MAIN POWER</strong></summary>

Matching connector XT30

</details>

<details>

<summary><strong>FRONT</strong></summary>

Matching connector Molex 503149-2000

{% hint style="info" %}
VDD\_SERVO\_FRONT power rail is internally limited to 2.5A
{% endhint %}

{% hint style="info" %}
5V\_LED power rail is internally limited to 1A
{% endhint %}

<table><thead><tr><th width="376">pin</th><th>function</th></tr></thead><tbody><tr><td>1</td><td>VDD_SERVO_FRONT</td></tr><tr><td>2</td><td>GND</td></tr><tr><td>3</td><td>VDD_SERVO_FRONT</td></tr><tr><td>4</td><td>GND</td></tr><tr><td>5</td><td>CAN1_H</td></tr><tr><td>6</td><td>CAN2_H</td></tr><tr><td>7</td><td>CAN1_L</td></tr><tr><td>8</td><td>CAN2_L</td></tr><tr><td>9</td><td>SERVO_9</td></tr><tr><td>10</td><td>GND</td></tr><tr><td>11</td><td>NC</td></tr><tr><td>12</td><td>NC</td></tr><tr><td>13</td><td>NC</td></tr><tr><td>14</td><td>NC</td></tr><tr><td>15</td><td>ADB(reserved)</td></tr><tr><td>16</td><td>GND</td></tr><tr><td>17</td><td>LED_FRO</td></tr><tr><td>18</td><td>GND</td></tr><tr><td>19</td><td>5V_LED_FRONT</td></tr><tr><td>20</td><td>GND</td></tr></tbody></table>

</details>

<details>

<summary><strong>WING_FL</strong></summary>

Matching connector Molex 503149-2000

{% hint style="info" %}
VDD\_SERVO\_FL power rail is internally limited to 2.5A
{% endhint %}

{% hint style="info" %}
WING\_FL, WING\_RL shares same 5V\_LED power rail, internally limited to 2A
{% endhint %}

<table><thead><tr><th width="376">pin</th><th>function</th></tr></thead><tbody><tr><td>1</td><td>VDD_SERVO_FL</td></tr><tr><td>2</td><td>GND</td></tr><tr><td>3</td><td>VDD_SERVO_FL</td></tr><tr><td>4</td><td>GND</td></tr><tr><td>5</td><td>CAN1_H</td></tr><tr><td>6</td><td>CAN2_H</td></tr><tr><td>7</td><td>CAN1_L</td></tr><tr><td>8</td><td>CAN2_L</td></tr><tr><td>9</td><td>SERVO_10</td></tr><tr><td>10</td><td>GND</td></tr><tr><td>11</td><td>SERVO_13</td></tr><tr><td>12</td><td>GND</td></tr><tr><td>13</td><td>SERVO_6</td></tr><tr><td>14</td><td>GND</td></tr><tr><td>15</td><td>ADB(reserved)</td></tr><tr><td>16</td><td>GND</td></tr><tr><td>17</td><td>LED_FL</td></tr><tr><td>18</td><td>GND</td></tr><tr><td>19</td><td>5V_LED_LEFT</td></tr><tr><td>20</td><td>GND</td></tr></tbody></table>

</details>

<details>

<summary><strong>WING_FR</strong></summary>

Matching connector Molex 503149-2000

{% hint style="info" %}
VDD\_SERVO\_FR power rail is internally limited to 2.5A
{% endhint %}

{% hint style="info" %}
WING\_FR, WING\_RR shares same 5V\_LED power rail, internally limited to 2A
{% endhint %}

<table><thead><tr><th width="376">pin</th><th>function</th></tr></thead><tbody><tr><td>1</td><td>VDD_SERVO_FR</td></tr><tr><td>2</td><td>GND</td></tr><tr><td>3</td><td>VDD_SERVO_FR</td></tr><tr><td>4</td><td>GND</td></tr><tr><td>5</td><td>CAN1_H</td></tr><tr><td>6</td><td>CAN2_H</td></tr><tr><td>7</td><td>CAN1_L</td></tr><tr><td>8</td><td>CAN2_L</td></tr><tr><td>9</td><td>SERVO_10</td></tr><tr><td>10</td><td>GND</td></tr><tr><td>11</td><td>SERVO_14</td></tr><tr><td>12</td><td>GND</td></tr><tr><td>13</td><td>SERVO_5</td></tr><tr><td>14</td><td>GND</td></tr><tr><td>15</td><td>ADB(reserved)</td></tr><tr><td>16</td><td>GND</td></tr><tr><td>17</td><td>LED_FR</td></tr><tr><td>18</td><td>GND</td></tr><tr><td>19</td><td>5V_LED_RIGHT</td></tr><tr><td>20</td><td>GND</td></tr></tbody></table>

</details>

<details>

<summary><strong>WING_RL</strong></summary>

Matching connector Molex 503149-2000

{% hint style="info" %}
VDD\_SERVO\_RL power rail is internally limited to 2.5A
{% endhint %}

{% hint style="info" %}
WING\_FL, WING\_RL shares same 5V\_LED power rail, internally limited to 2A
{% endhint %}

<table><thead><tr><th width="376">pin</th><th>function</th></tr></thead><tbody><tr><td>1</td><td>VDD_SERVO_RL</td></tr><tr><td>2</td><td>GND</td></tr><tr><td>3</td><td>VDD_SERVO_RL</td></tr><tr><td>4</td><td>GND</td></tr><tr><td>5</td><td>CAN1_H</td></tr><tr><td>6</td><td>CAN2_H</td></tr><tr><td>7</td><td>CAN1_L</td></tr><tr><td>8</td><td>CAN2_L</td></tr><tr><td>9</td><td>SERVO_8</td></tr><tr><td>10</td><td>GND</td></tr><tr><td>11</td><td>SERVO_4</td></tr><tr><td>12</td><td>GND</td></tr><tr><td>13</td><td>SERVO_2</td></tr><tr><td>14</td><td>GND</td></tr><tr><td>15</td><td>ADB(reserved)</td></tr><tr><td>16</td><td>GND</td></tr><tr><td>17</td><td>LED_RL</td></tr><tr><td>18</td><td>GND</td></tr><tr><td>19</td><td>5V_LED_LEFT</td></tr><tr><td>20</td><td>GND</td></tr></tbody></table>

</details>

<details>

<summary><strong>WING_RR</strong></summary>

Matching connector Molex 503149-2000

{% hint style="info" %}
VDD\_SERVO\_RR power rail is internally limited to 2.5A
{% endhint %}

{% hint style="info" %}
WING\_FR, WING\_RR shares same 5V\_LED power rail, internally limited to 2A
{% endhint %}

<table><thead><tr><th width="376">pin</th><th>function</th></tr></thead><tbody><tr><td>1</td><td>VDD_SERVO_RR</td></tr><tr><td>2</td><td>GND</td></tr><tr><td>3</td><td>VDD_SERVO_RR</td></tr><tr><td>4</td><td>GND</td></tr><tr><td>5</td><td>CAN1_H</td></tr><tr><td>6</td><td>CAN2_H</td></tr><tr><td>7</td><td>CAN1_L</td></tr><tr><td>8</td><td>CAN2_L</td></tr><tr><td>9</td><td>SERVO_7</td></tr><tr><td>10</td><td>GND</td></tr><tr><td>11</td><td>SERVO_3</td></tr><tr><td>12</td><td>GND</td></tr><tr><td>13</td><td>SERVO_1</td></tr><tr><td>14</td><td>GND</td></tr><tr><td>15</td><td>ADB(reserved)</td></tr><tr><td>16</td><td>GND</td></tr><tr><td>17</td><td>LED_RR</td></tr><tr><td>18</td><td>GND</td></tr><tr><td>19</td><td>5V_LED_RIGHT</td></tr><tr><td>20</td><td>GND</td></tr></tbody></table>

</details>

<details>

<summary><strong>TAIL</strong></summary>

Matching connector Molex 503149-2000

{% hint style="info" %}
VDD\_SERVO\_TAIL power rail is internally limited to 2.5A
{% endhint %}

{% hint style="info" %}
5V\_LED power rail is internally limited to 1A
{% endhint %}

<table><thead><tr><th width="376">pin</th><th>function</th></tr></thead><tbody><tr><td>1</td><td>VDD_SERVO_TAIL</td></tr><tr><td>2</td><td>GND</td></tr><tr><td>3</td><td>VDD_SERVO_TAIL</td></tr><tr><td>4</td><td>GND</td></tr><tr><td>5</td><td>CAN1_H</td></tr><tr><td>6</td><td>CAN2_H</td></tr><tr><td>7</td><td>CAN1_L</td></tr><tr><td>8</td><td>CAN2_L</td></tr><tr><td>9</td><td>SERVO_11</td></tr><tr><td>10</td><td>GND</td></tr><tr><td>11</td><td>SERVO_12</td></tr><tr><td>12</td><td>GND</td></tr><tr><td>13</td><td>NC</td></tr><tr><td>14</td><td>NC</td></tr><tr><td>15</td><td>ADB(reserved)</td></tr><tr><td>16</td><td>GND</td></tr><tr><td>17</td><td>LED_TAIL</td></tr><tr><td>18</td><td>GND</td></tr><tr><td>19</td><td>5V_LED_BACK</td></tr><tr><td>20</td><td>GND</td></tr></tbody></table>

</details>

<details>

<summary><strong>BATTERY SIGNAL</strong></summary>

Matching connector JST GHR-08V-S

| pin | function    |
| --- | ----------- |
| 1   | VBAT        |
| 2   | CAN2\_L     |
| 3   | CAN2\_H     |
| 4   | BAT\_VSENSE |
| 5   | BAT\_ISENSE |
| 6   | BUTTON      |
| 7   | PDB SWITCH  |
| 8   | GND         |

</details>

<details>

<summary><strong>PAYLOAD SIGNALS</strong></summary>

Matching connector Hirose DF36-50P-0.4SD

| pin | function                                       |
| --- | ---------------------------------------------- |
| 1   | GbE\_DA\_N                                     |
| 2   | GbE\_DA\_P                                     |
| 3   | GbE\_DB\_N                                     |
| 4   | GbE\_DB\_P                                     |
| 5   | GbE\_DC\_N                                     |
| 6   | GbE\_DC\_P                                     |
| 7   | GbE\_DD\_N                                     |
| 8   | GbE\_DD\_P                                     |
| 9   | CAM3\_I2C\_SDA                                 |
| 10  | CAM3\_I2C\_SCL                                 |
| 11  | CAM3\_MCLK                                     |
| 12  | CAM3\_PWDN                                     |
| 13  | CAM3\_CLK\_P                                   |
| 14  | CAM3\_CLK\_N                                   |
| 15  | CAM3\_D1\_P                                    |
| 16  | CAM3\_D1\_N                                    |
| 17  | CAM3\_D0\_P                                    |
| 18  | CAM3\_D0\_N                                    |
| 19  | CAM2\_I2C\_SDA                                 |
| 20  | CAM2\_I2C\_SCL                                 |
| 21  | CAM2\_MCLK                                     |
| 22  | CAM2\_PWDN                                     |
| 23  | CAM2\_CLK\_P                                   |
| 24  | CAM2\_CLK\_N                                   |
| 25  | CAM2\_D1\_P                                    |
| 26  | CAM2\_D1\_N                                    |
| 27  | CAM2\_D0\_P                                    |
| 28  | CAM2\_D0\_N                                    |
| 29  | USB1\_PWRCTL                                   |
| 30  | USB1\_OC                                       |
| 31  | USB1\_D\_P                                     |
| 32  | USB1\_D\_N                                     |
| 33  | USB1\_SSTX\_P                                  |
| 34  | USB1\_SSTX\_N                                  |
| 35  | USB1\_SSRX\_P                                  |
| 36  | USB1\_SSRX\_N                                  |
| 37  | USB0\_SSTX\_P                                  |
| 38  | USB0\_SSTX\_N                                  |
| 39  | USB0\_SSRX\_P                                  |
| 40  | USB0\_SSRX\_N                                  |
| 41  | CAN1\_H                                        |
| 42  | CAN1\_L                                        |
| 43  | CAN2\_H                                        |
| 44  | CAN2\_L                                        |
| 45  | UART\_JET\_TX                                  |
| 46  | UART\_JET\_RX                                  |
| 47  | JETSON\_GPIOx                                  |
| 48  | JETSON\_GPIOx                                  |
| 49  | SERIAL1\_TX (available through solder bridges) |
| 50  | SERIAL1\_RX (available through solder bridges) |

</details>

<details>

<summary><strong>PAYLOAD POWER</strong></summary>

Matching connector Molex 502578-060x

{% hint style="info" %}
VDD\_BATT rail is fused with a 1A fuse
{% endhint %}

{% hint style="info" %}
12V and 5V rails are each internally limited to 2A
{% endhint %}

| pin | function   |
| --- | ---------- |
| 1   | VDD\_BATT  |
| 2   | 12V\_LOAD  |
| 3   | 5V\_PERIPH |
| 4   | GND        |
| 5   | GND        |
| 6   | GND        |

</details>

<details>

<summary><strong>SILVUS RADIO</strong></summary>

Matching connector Hirose DF56-50P-0.3SD(51)

| pin   | function   |
| ----- | ---------- |
| 1-5   | NC         |
| 6     | GND        |
| 7     | GND        |
| 8     | NC         |
| 9     | NC         |
| 10    | GND        |
| 11    | NC         |
| 12    | RS232\_TX  |
| 13    | NC         |
| 14    | RS232\_RX  |
| 15-35 | NC         |
| 36    | ETH\_DD\_N |
| 37    | NC         |
| 38    | ETH\_DD\_P |
| 39    | NC         |
| 40    | ETH\_DC\_N |
| 41    | NC         |
| 42    | ETH\_DC\_P |
| 43    | NC         |
| 44    | ETH\_DB\_N |
| 45    | NC         |
| 46    | ETH\_DB\_P |
| 47    | nSHDN      |
| 48    | ETH\_DA\_N |
| 49    | GND        |
| 50    | ETH\_DA\_P |

</details>

<details>

<summary><strong>SILVUS POWER</strong></summary>

Matching connector Hirose DF57H-4S-1.2C

{% hint style="info" %}
Power supply rail is internally limited to 4A
{% endhint %}

| pin | function |
| --- | -------- |
| 1   | 12V      |
| 2   | 12V      |
| 3   | GND      |
| 4   | GND      |

</details>

<details>

<summary><strong>DOODLE RADIO</strong></summary>

Matching connector JST GHR-10V-S

{% hint style="info" %}
Power supply rail is internally limited to 4A
{% endhint %}

| pin | function   |
| --- | ---------- |
| 1   | 5V\_PERIPH |
| 2   | 5V\_PERIPH |
| 3   | GND        |
| 4   | GND        |
| 5   | RESET      |
| 6   | UART\_RX   |
| 7   | UART\_TX   |
| 8   | USB\_D\_N  |
| 9   | USB\_D\_P  |
| 10  | GND        |

</details>

<details>

<summary><strong>AUX POWER</strong></summary>

Matching connector Molex 502578-060x

{% hint style="info" %}
VDD \_MAIN rail is fused with a 1A fuse
{% endhint %}

{% hint style="info" %}
12V and 5V rails are each internally limited to 2A
{% endhint %}

| pin | function  |
| --- | --------- |
| 1   | VDD\_MAIN |
| 2   | 12V       |
| 3   | 5V        |
| 4   | GND       |
| 5   | GND       |
| 6   | GND       |

</details>

<details>

<summary><strong>CAM0, CAM1 (2-lane CSI)</strong></summary>

* 501951-2210 connector type
* 2 lanes MIPI CSI connectors
* I2C and PWDN are 3V3 logic

{% hint style="info" %}
CAM0, CAM1 shares same power rail, internally limited to 0.5A
{% endhint %}

{% hint style="info" %}
JET\_CAM\_SUPPLY is configurable to 3V3 or 5V by solder bridge on the bottom side of the board

SB open = 3V3 , SB closed = 5V
{% endhint %}

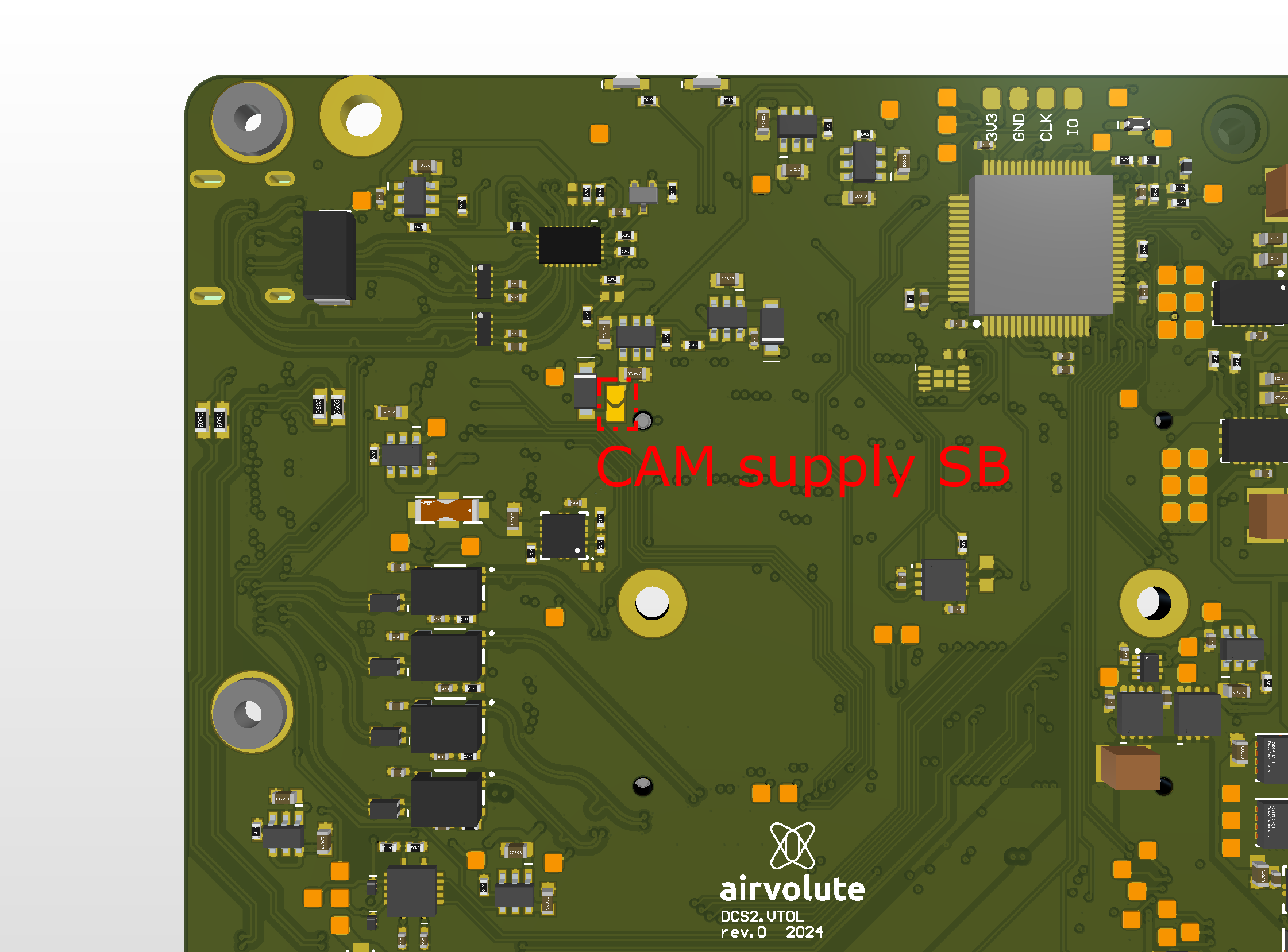

<figure><img src="https://341257526-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FkuuT7PXOBpck5wDlb6XM%2Fuploads%2Fgit-blob-18c1076fb6596f8fd4a5cfef284d15cb42e4606b%2FDCS2_VTOL_bot.png?alt=media" alt=""><figcaption><p>Location of JET_CAM_SUPPLY solder bridge</p></figcaption></figure>

{% hint style="danger" %}
Pay attention to the cable pins' orientation (same/opposite side contacts). Cameras from different manufacturers can have different pin orders, so a wrong cable can cause a short-circuit!
{% endhint %}

| pin | function         |
| --- | ---------------- |
| 1   | JET\_CAM\_SUPPLY |
| 2   | I2C\_SDA         |
| 3   | I2C\_SCL         |
| 4   | GND              |
| 5   | MCLK             |
| 6   | PWDN             |
| 7   | GND              |
| 8   | NC               |
| 9   | NC               |
| 10  | GND              |
| 11  | NC               |
| 12  | NC               |
| 13  | GND              |
| 14  | CSI\_CLK\_P      |
| 15  | CSI\_CLK\_N      |
| 16  | GND              |
| 17  | CSI\_D1\_P       |
| 18  | CSI\_D1\_N       |
| 19  | GND              |
| 20  | CSI\_D0\_P       |
| 21  | CSI\_D0\_N       |
| 22  | GND              |

</details>

<details>

<summary><strong>SPI_JET</strong></summary>

* Matching connector JST GHR-08V-S
* 3V3 SPI voltage logic

{% hint style="info" %}
SPI\_JET and CAN\_JET share the same power supply rail, internally limited to 0.5
{% endhint %}

| pin | function        |
| --- | --------------- |
| 1   | 5V\_JET\_PERIPH |
| 2   | SPI0\_CS1       |
| 3   | SPI0\_CS0       |
| 4   | SPI0\_MISO      |
| 5   | SPI0\_CLK       |
| 6   | SPI0\_MOSI      |
| 7   | NC              |
| 8   | GND             |

</details>

<details>

<summary><strong>CAN_JET</strong></summary>

Matching connector JST GHR-04V-S

{% hint style="info" %}
SPI\_JET and CAN\_JET share the same power supply rail, internally limited to 0.5A
{% endhint %}

| pin | function        |
| --- | --------------- |
| 1   | 5V\_JET\_PERIPH |
| 2   | CAN\_H          |
| 3   | CAN\_L          |
| 4   | GND             |

</details>

<details>

<summary><strong>USB 3.2 JET</strong></summary>

* USB C type connector
* supports USB 3.2 Gen 2
* power delivery up to <5V@1.5A>

</details>

<details>

<summary><strong>PCIE EXT.</strong></summary>

* Connector type FH48-20S-0.5SV
* PCIE x1 bus
* Possibility to use an expansion board to M2 key M connector to use another external NVME

{% hint style="info" %}
Power supply rail is internally limited to 2A
{% endhint %}

| pin | function      |
| --- | ------------- |
| 1   | GND           |
| 2   | TX\_P         |
| 3   | TX\_N         |
| 4   | GND           |
| 5   | RX\_P         |
| 6   | RX\_N         |
| 7   | GND           |
| 8   | CLK\_P        |
| 9   | CLK\_N        |
| 10  | GND           |
| 11  | SUSCLK 32kHz  |
| 12  | GND           |
| 13  | PCIE\_nRST    |
| 14  | PCIE\_nCLKREQ |
| 15  | PCIE\_nWAKE   |
| 16  | 3V3           |
| 17  | 3V3           |
| 18  | 3V3           |
| 19  | 3V3           |
| 20  | 3V3           |

</details>

<details>

<summary><strong>LIDAR</strong></summary>

* Matching connector JST GHR-06V-S

{% hint style="info" %}
SERIAL5 and LIDAR share same power rail internally limited to 1A
{% endhint %}

{% hint style="info" %}
Pinout as original Lightware lidars, lidar cable designed for its I2C communication
{% endhint %}

{% hint style="warning" %}
Both pins 2 and 4 need to be used together as the SDA line
{% endhint %}

| pin | function    |
| --- | ----------- |
| 1   | NC          |
| 2   | I2C2\_SDA   |
| 3   | I2C2\_SCL   |
| 4   | I2C2\_SDA   |
| 5   | GND         |
| 6   | 5V\_CRUCIAL |

</details>

<details>

<summary><strong>SERIAL5</strong></summary>

* Matching connector JST GHR-06V-S

{% hint style="info" %}
SERIAL5 and LIDAR share same power rail internally limited to 1A
{% endhint %}

| pin | function    |
| --- | ----------- |
| 1   | 5V\_CRUCIAL |
| 2   | SERIAL5\_TX |
| 3   | SERIAL5\_RX |
| 4   | S.BUS\_OUT  |
| 5   | NC          |
| 6   | GND         |

</details>

<details>

<summary><strong>GPS</strong></summary>

Matching connector JST GHR-08V-S

{% hint style="info" %}
5V power rail internally limited to 1A
{% endhint %}

| pin | function             |
| --- | -------------------- |
| 1   | 5V\_CRUCIAL          |
| 2   | SERIAL3\_TX          |
| 3   | SERIAL3\_RX          |
| 4   | I2C1\_SCL            |
| 5   | I2C1\_SDA            |
| 6   | SAFETY               |
| 7   | IO-LED\_SAFETY\_PROT |
| 8   | GND                  |

</details>

<details>

<summary><strong>SERIAL1</strong></summary>

Matching connector JST GHR-06V-S

{% hint style="info" %}
5V power rail internally limited to 1A
{% endhint %}

| pin | function     |
| --- | ------------ |
| 1   | 5V\_PERIPH   |
| 2   | SERIAL1\_TX  |
| 3   | SERIAL1\_RX  |
| 4   | SERIAL1\_CTS |
| 5   | SERIAL1\_RTS |
| 6   | GND          |

</details>

<details>

<summary><strong>I2C2</strong></summary>

Matching connector JST GHR-04V-S

{% hint style="info" %}
I2C2, CAN1, CAN2 connectors share the same power rail internally limited to 2A
{% endhint %}

| pin | function    |
| --- | ----------- |
| 1   | 5V\_CRUCIAL |
| 2   | I2C2\_SCL   |
| 3   | I2C2\_SDA   |
| 4   | GND         |

</details>

<details>

<summary><strong>CAN1</strong></summary>

Matching connector JST GHR-04V-S

{% hint style="info" %}
I2C2, CAN1, CAN2 connectors share the same power rail internally limited to 2A
{% endhint %}

| pin | function    |
| --- | ----------- |
| 1   | 5V\_CRUCIAL |
| 2   | CAN1\_H     |
| 3   | CAN1\_L     |
| 4   | GND         |

</details>

<details>

<summary><strong>CAN2</strong></summary>

Matching connector JST GHR-04V-S

{% hint style="info" %}
I2C2, CAN1, CAN2 connectors share the same power rail internally limited to 2A
{% endhint %}

| pin | function    |
| --- | ----------- |
| 1   | 5V\_CRUCIAL |
| 2   | CAN2\_H     |
| 3   | CAN2\_L     |
| 4   | GND         |

</details>

<details>

<summary><strong>GPIO</strong></summary>

Matching connector JST GHR-06V-S

| pin | function       |
| --- | -------------- |
| 1   | NC             |
| 2   | MCU\_SPI\_MISO |
| 3   | MCU\_SPI\_MOSI |
| 4   | MCU\_SPI\_SCK  |
| 5   | MCU\_SPI\_CS   |
| 6   | GND            |

</details>

<details>

<summary><strong>CFG</strong></summary>

Matching connector JST GHR-03V-S

| pin | function |
| --- | -------- |
| 1   | GND      |
| 2   | NC       |
| 3   | COM      |

</details>

<details>

<summary><strong>BUTTON</strong></summary>

Matching connector JST GHR-02V-S

{% hint style="info" %}
Connect the SB1 to autostart board
{% endhint %}

| pin | function |
| --- | -------- |
| 1   | BUTTON   |
| 2   | GND      |

</details>

***

### Bottom side connectors

<figure><img src="https://341257526-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FkuuT7PXOBpck5wDlb6XM%2Fuploads%2Fgit-blob-d001dd0c39ab31b30faa0c3a94b2e1cc85a35d15%2FDCS2_VTOL_bot_full.png?alt=media" alt=""><figcaption><p>DCS2.VTOL bottom side connectors orientation</p></figcaption></figure>

{% hint style="info" %}
There are no connectors on the bottom side
{% endhint %}


---

# Agent Instructions: Querying This Documentation

If you need additional information that is not directly available in this page, you can query the documentation dynamically by asking a question.

Perform an HTTP GET request on the current page URL with the `ask` query parameter:

```
GET https://test-airvolute.gitbook.io/test-airvolute-docs/autopilots/dronecore-2/boards/adapter-extension-boards/vtol-board.md?ask=<question>
```

The question should be specific, self-contained, and written in natural language.
The response will contain a direct answer to the question and relevant excerpts and sources from the documentation.

Use this mechanism when the answer is not explicitly present in the current page, you need clarification or additional context, or you want to retrieve related documentation sections.
